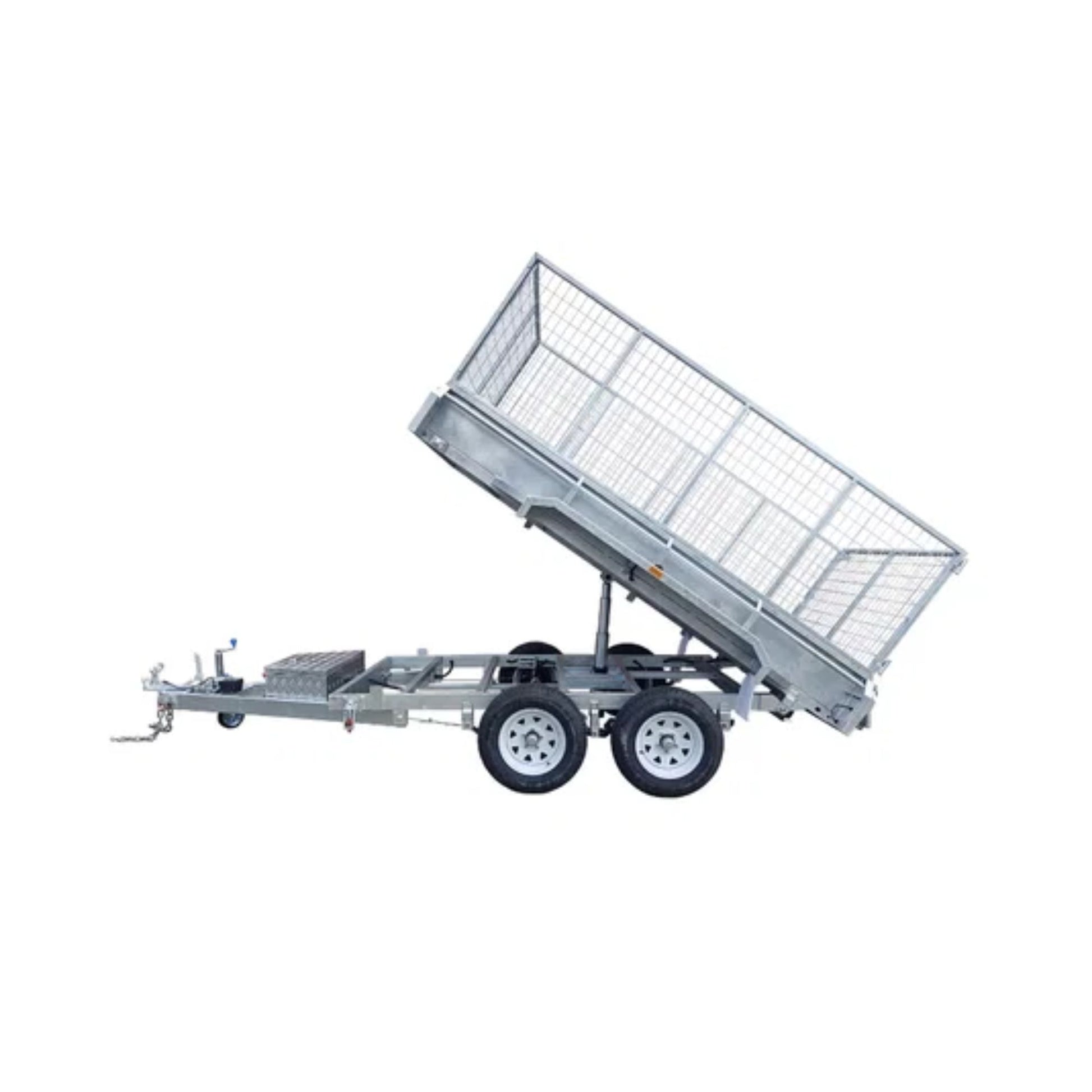

A compact but heavy-duty hydraulic tipper trailer built for tradies, landscapers, earthmoving, and property maintenance. Designed to make transporting and unloading materials quicker and more efficient.
Features
3500kg ATM
Heavy-duty swing-up jockey wheel
Manual parking brakes fitted
Fully welded one-piece steel chassis
Integrated hydraulic power pack
4-stage hydraulic tipping ram with up to 4000kg lifting capacity
600mm galvanised mesh cage included
450mm high trailer sides for increased carrying volume
Extended 1900mm drawbar for easier manoeuvring and reversing
15" Sunraysia steel wheels fitted with light truck tyres
12" electric drum brakes on both axles
Heavy-duty solid axles rated to 2000kg each
2.5mm galvanised checker plate construction on floor, sides, gates, and guards
Rocker roller suspension with heavy-duty 9-leaf spring packs
100mm × 50mm × 5mm box-section steel used throughout the drawbar and main chassis
Breakaway braking system fitted
Anderson plug installed
Lockable toolbox protecting hydraulic components
Front and rear drop-down gates for flexible loading and unloading
Tie-down rails fitted around the trailer
12V battery supplied for hydraulic operation
LED tail lights
ADR-compliant safety chains with load-rated shackles
Flat 7-pin trailer plug
Ideal For
Soil, gravel, mulch, and sand
Landscaping and gardening projects
Construction materials
Green waste and rubbish removal
Firewood and rural property maintenance
Trade and commercial use
Compact enough for tighter access while still offering serious carrying and tipping capability, this 8×5 hydraulic tipper trailer is a practical solution for moving and unloading heavy materials with ease.
