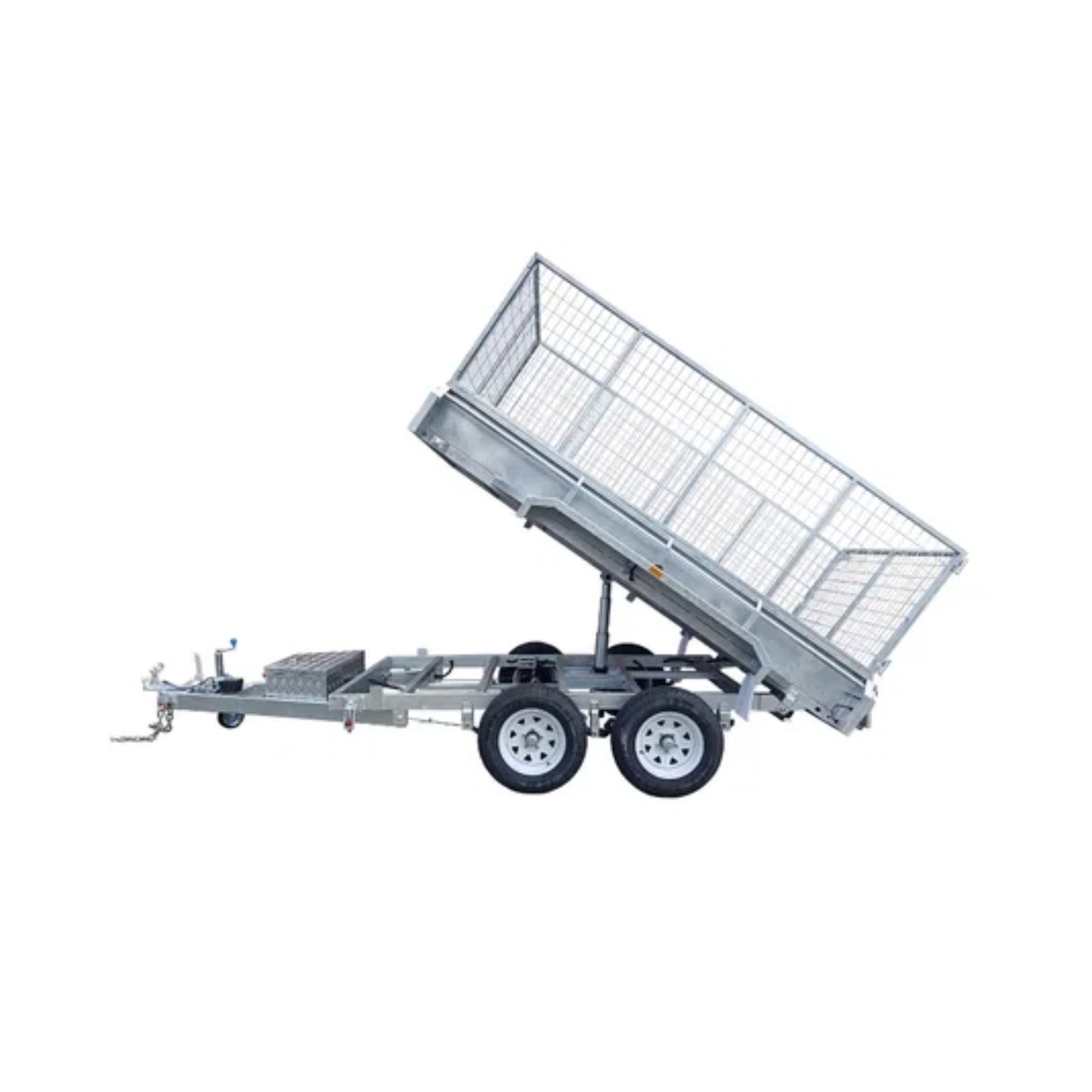

10×5 Hydraulic Tipper Trailer – 3500kg ATM

Designed for tradies, landscapers, builders, and contractors, this heavy-duty hydraulic tipper trailer makes loading, transporting, and unloading bulk materials fast and efficient.

Features

• 3500kg ATM
• Heavy-duty swing-up jockey wheel
• Manual parking brakes fitted
• Fully welded one-piece chassis construction
• Integrated hydraulic power pack
• 4-stage hydraulic tipping ram rated to lift loads up to 4000kg
• 600mm galvanised mesh cage included
• 450mm high trailer sides for increased load capacity
• Extra-long 1900mm drawbar for improved reversing and towing control
• 15" Sunraysia steel wheels fitted with light truck tyres
• 12" electric drum brakes on both axles
• Dual solid axles rated at 2000kg each
• 2.5mm galvanised checker plate construction on floor, sides, gates, and guards
• Heavy-duty rocker roller suspension with 9-leaf spring packs
• 100mm × 50mm × 5mm box section steel used throughout the drawbar and main chassis
• Battery-powered breakaway braking system
• Anderson plug fitted
• Lockable toolbox housing hydraulic components
• Front and rear drop-down gates for easy loading and unloading
• Tie-down rails fitted around the trailer
• 12V automotive battery included
• LED rear lighting
• ADR-compliant safety chains with load-rated shackles
• Flat 7-pin trailer plug

Ideal For

• Soil, sand, gravel, and mulch
• Landscaping projects
• Construction and demolition waste
• Firewood and green waste
• Trade and commercial applications

Built tough for demanding workloads, this hydraulic tipper trailer delivers reliable tipping performance, heavy-duty construction, and the convenience needed to get the job done efficiently.
